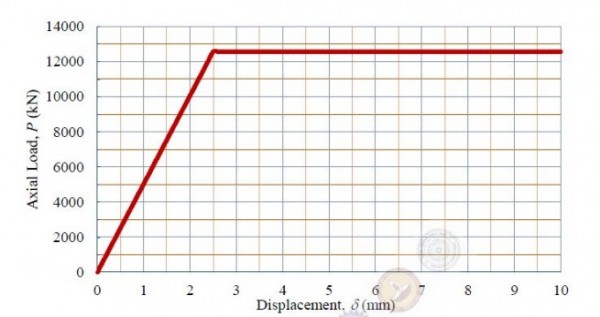

A $2$ m long, axially loaded mild steel rod of $8$ mm diameter exhibits the load-displacement $(P-\delta)$ behavior as shown in the figure.

Assume the yield stress of steel as $250$ MPa. The complementary strain energy (in N-mmm) stored in the bar up to its linear elastic behavior will be _____

in Others by (3.9k points)
retagged by

Please log in or register to answer this question.
